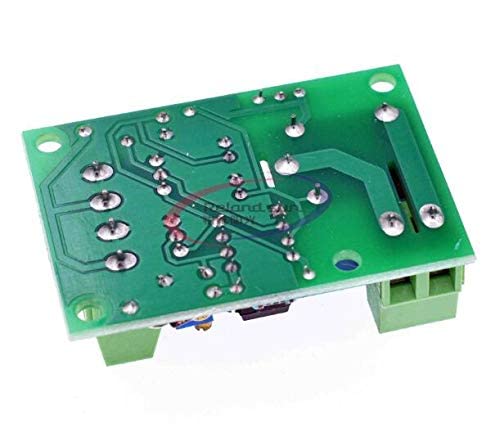

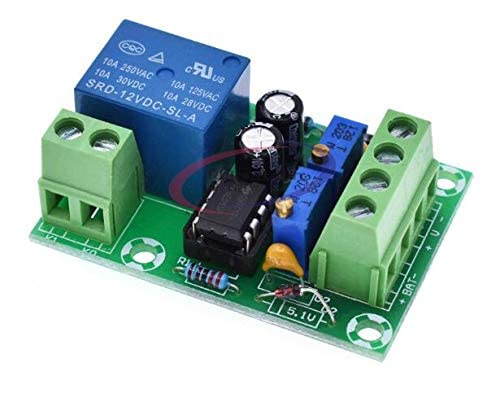

XH-M601 Battery Charging Control Board 12V Intelligent Charger Power Supply Control Modul

Product Introduction: 1.Name:12V charger power control board 2.Model:XH-M601 3.Power Supply Voltage:13.8-14.8V 4.Relay Operating Voltage:12.4V 5.Relay Disconnect Voltage:14.8V 6.Voltage Tolerance:+/-0.1V 7.Voltage Detection Way: DC voltmeter 8.Charging Type:12V storage battery 9.Potentiometer Adjustment:RP1 RP2 10.Size:50*32*18mm Potentiometer Adjustment: 1.RP1:adjust storage battery start charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower) 2.RP2:adjust storage battery disconnect charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower).
