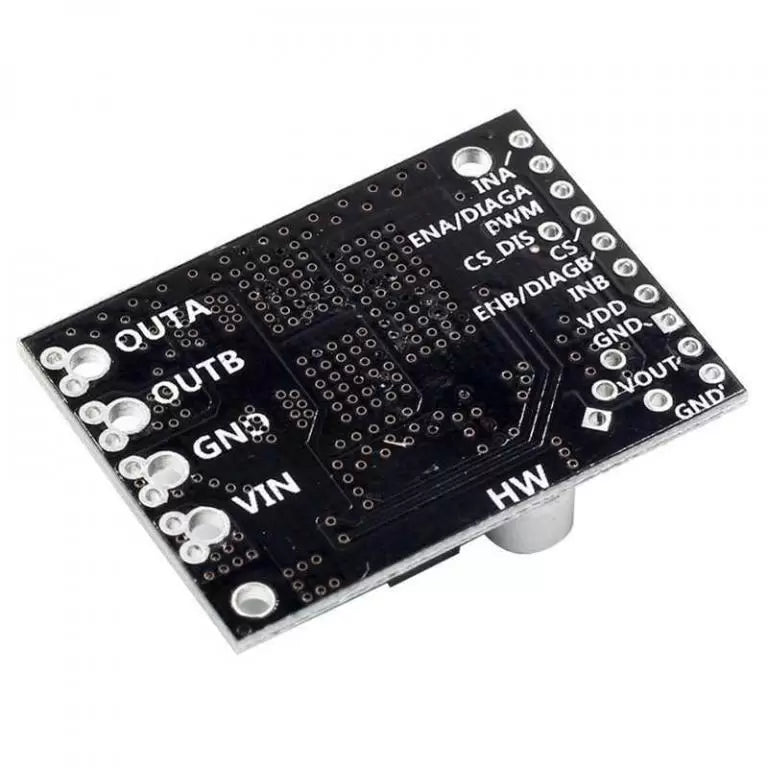

VNH5019 Dc-Motor Drive Single Module 30A – Systems

Feature:

1.VNH5019 dual motor driver shield is compatible with controllers

2.The shield uses STS VNH5019 driver chip, and its operating voltage is from 5.5V to 24V, each way to provide 12A current up to 30A peak current, which can be described as DC motor driver board.

3.The entire board uses SMD surface mounted components, with the features of small size and light weight, which can easily control two bi-directional and high-power DC motors through For Arduino control.

4.Onboard with pull-up resistors, protective resistance and reverse battery protection of FET, the shield is by default IO interface, easy to use, furthermore, its performance and power are greatly beyond the L298 series driver used by beginners.

Parameter:VNH5019 Dc-Motor Drive

1. Operating Voltage Range: 5.5V- 24V
2. Driver Chip: VNH5019
3. Drive Channel: 2-Way
4. Single Channel Continuous Output Current Value: 12A
5. Single Channel Maximum Output Current: 30A
6. Current Detection: 0.14 V/ A

7. Reverse voltage protection mode is available.
