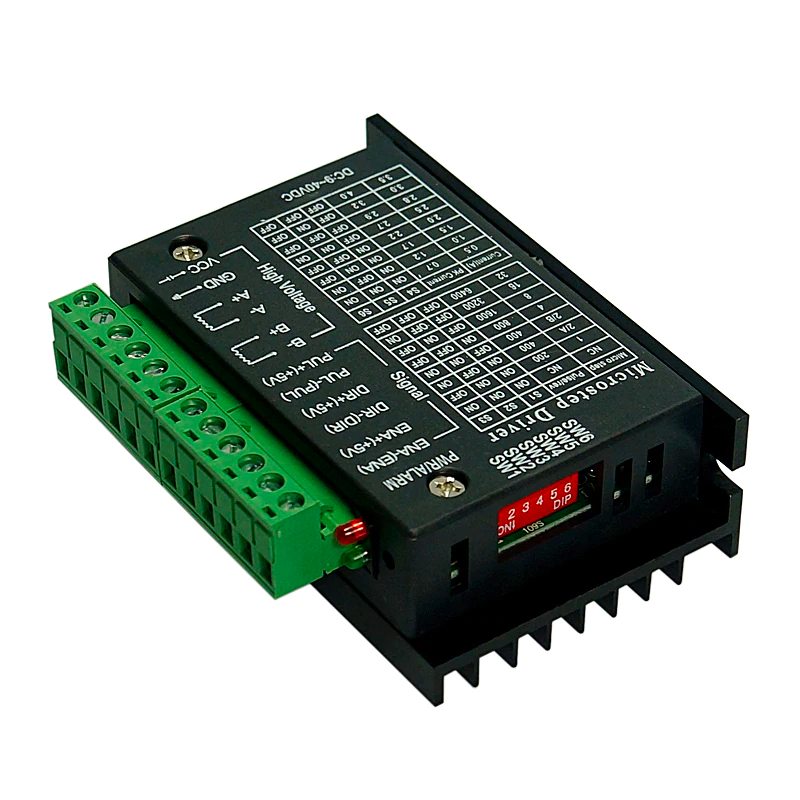

TB6600 Stepper Motor Driver Controller 4A is an easy-to-use professional Arduino stepper motor driver, which can control a two-phase stepper motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. Jumper wires are used to connect the stepper motor to the Arduino.

TB6600 Arduino stepper motor driver has a wide range of power inputs and a 9~42VDC power supply. It is able to output a 4A peak current, which is enough for most of the stepper motors. The stepper driver supports speed and direction control.

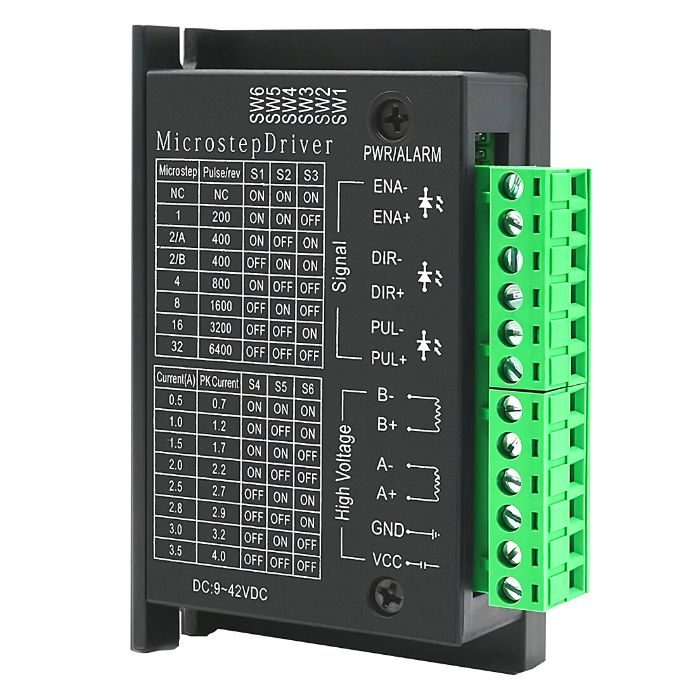

You can set its micro-step and output current with a 6 DIP switch. There are 7 kinds of micro-steps (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. And all signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability. As a professional device, it is able to drive 57, 42-type two-phase, four-phase, hybrid stepper motors.

TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis Upgraded Version of the 42/57/86 Stepper Motor segment increased to 32 segments, suitable for high subdivision applications. Suitable for step motor:57, 42, 86 Type 4 phase 2 phase (4 line 6 line 8).

 Control signal connections:

•    PUL +: positive pulse signal input.
•    PUL-: pulse signal input negative.
•    DIR +: the motor is, reverse the positive control.
•    DIR-: the motor is, reverse the negative control.
•    ENA +: positive control motor off.
•    ENA-: motor off control of the negative.:
