Description

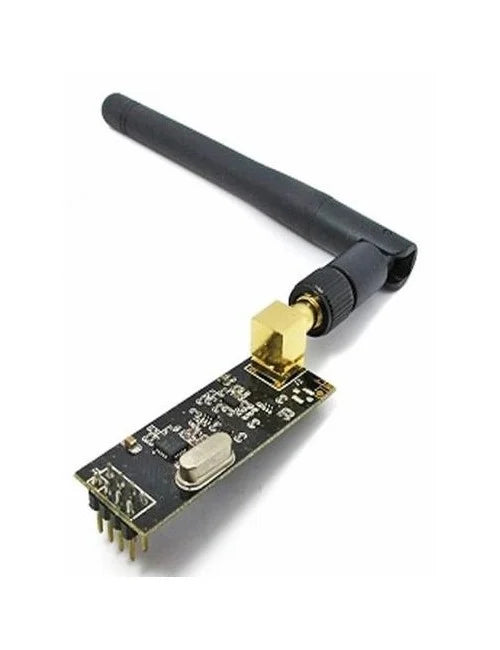

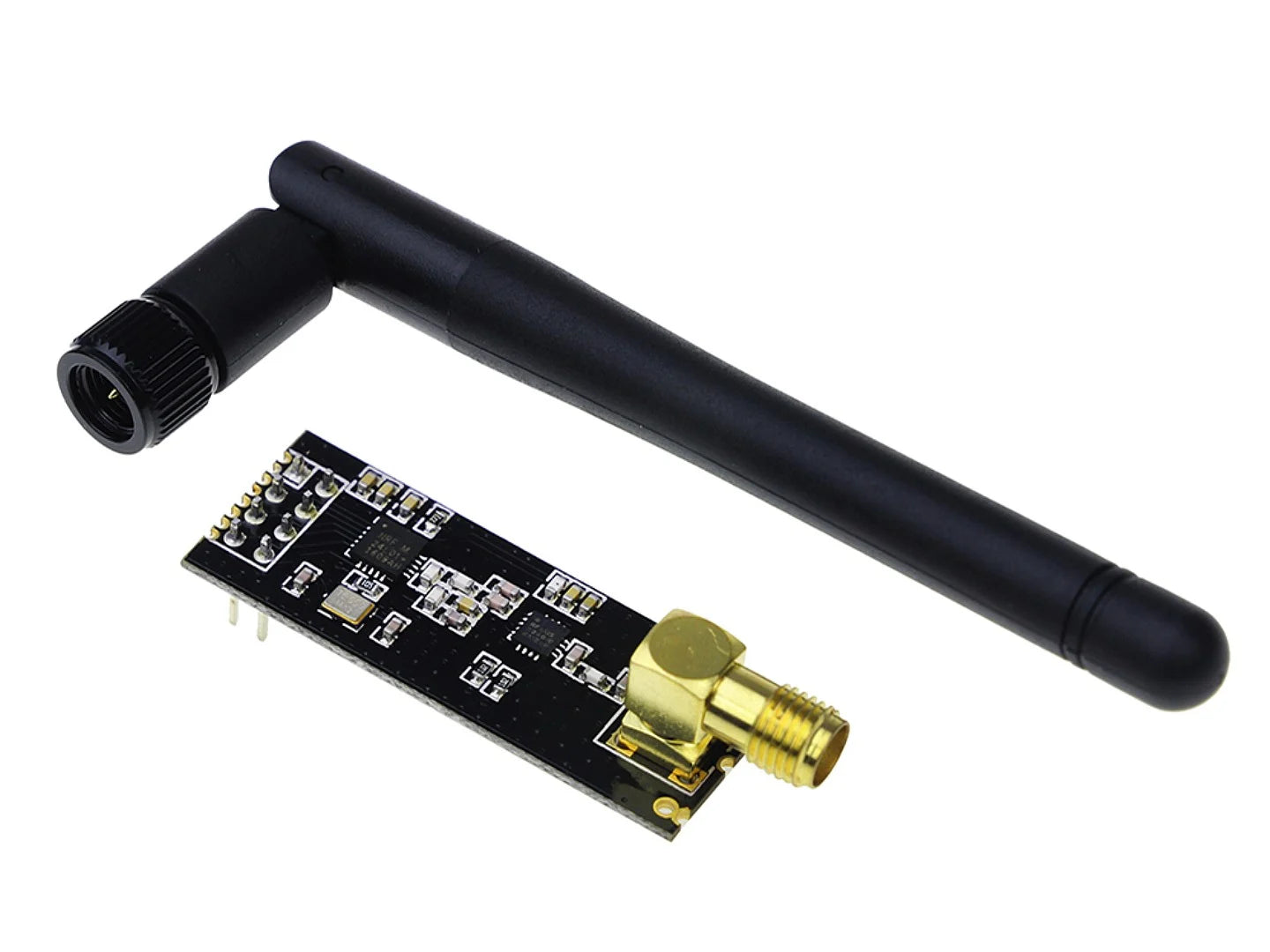

This NRF24L01+PA+LNA Wireless transceiver module is based on 2.4Ghz transceiver NRF24L01+ from Nordic Semiconductors. This board contains a reverse polarized SMA Connector to maximize the RF Range, and there is PA and LNA circuit on board. With the use of external antenna, the range of the device can be very long as compared to a module without this. The antenna is a 2.4 Antenna with 2 gain. After the use of external antenna, the communication range increases to 800-1000 meters.
The NRF24L01+PA+LNA module is easily attachable to any MCU. This module is designed with power amplifier and SMA Antenna. And that allows it to be used for wireless communication of up to 1000 meters (No Barrier).
- Supply Voltage: 3 to 3.6 V
- Max Output Power: +20 dBm
- Current Consumption in transmit mode: 115 mA
- Current Consumption in receiver mode: 45 mA
- Uses 2.4 ISM Band, globally license free
- Air Data Rate of 2 Mbit/s can support high quality VoIP
- SPI Interface for communication with MCU
- Supports six channel data reception
- Multi frequency points: 125 Frequency points meet the needs of multi-point communication and frequency hopping
Package Includes:
- 1 x 2.4 NRF24L01+PA+LNA Module
- 1 x SMA Antenna.
