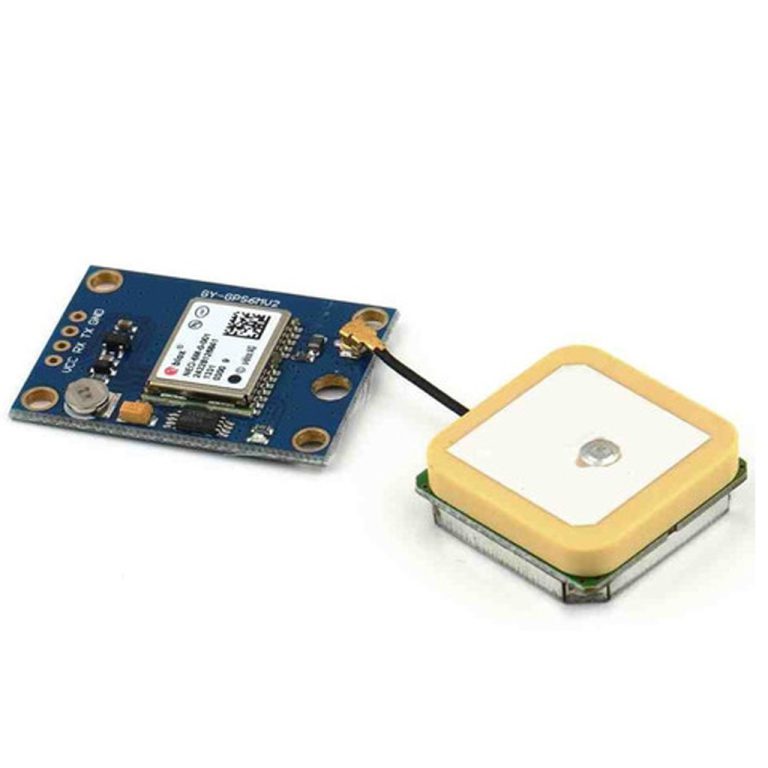

NEO-6M GPS Module with EPROM

NEO-6M TTL GPS Module with EPROM uses the latest technology from to give the best possible positioning information and includes a larger built-in 25 x 25mm active GPS antenna with a UART TTL socket. A battery is also included so that you can obtain a GPS lock faster. This is an updated GPS sensor that can be used with mega v2. This GPS module gives the best possible position information, allowing for better performance with your or other Multirotor control platform.

The  NEO-6M GPS engine on this board is a quite good one, with a high precision binary output. It has also high sensitivity for indoor applications. UBLOX NEO-6M GPS Module has a battery for power backup and EEPROM for storing configuration settings. The antenna is connected to the module through a cable which allows for flexibility in mounting the GPS such that the antenna will always see the sky for best performance. This makes it powerful to use with cars and other mobile applications.

The  GPS module has serial TTL output, it has four pins: TX, RX, VCC, and GND. You can download the u-center software for configuring the GPS and changing the settings and much more. It is really good software (see link below).

Features:

• 5Hz position update rate
• Operating temperature range: -40 TO 85°CUART TTL socket
• EEPROM to save configuration settings
• Rechargeable battery for Backup
• The cold start time of 38 s and Hot start time of 1 s
• Supply voltage: 3.3 V
• Configurable from 4800 Baud to 115200 Baud rates. (default 9600)
