MQ-3 Gas Sensor Module For Benzine, CH4, Hexane, LPG, CO Detector Module

MQ-3 Gas Sensor Module For Benzine, CH4, Hexane, LPG, CO Detector Module

Rs. 250.00
Rs. 250.00
Sale Sold out
Shipping calculated at checkout.
WhatsApp Order On WhatsApp

MQ-3 Benzene & CH4 Gas Sensor – MQ-3 sensor for benzene, methane, LPG & CO detection. -Gas Sensor -Robocraze

  • This is an MQ-3 Gas Sensor
  • This Gas Sensor is Compatible with most of the microcontrollers
  • It has a Fast response and High sensitivity
  • The carbon monoxide detection with better sensitivity.
  • It has a Long life
  • It is available at a low cost
  • Rapid response recovery features

  • This MQ-3 Alcohol Detector Gas Sensor Module is simple to use. MQ-3 Alcoho

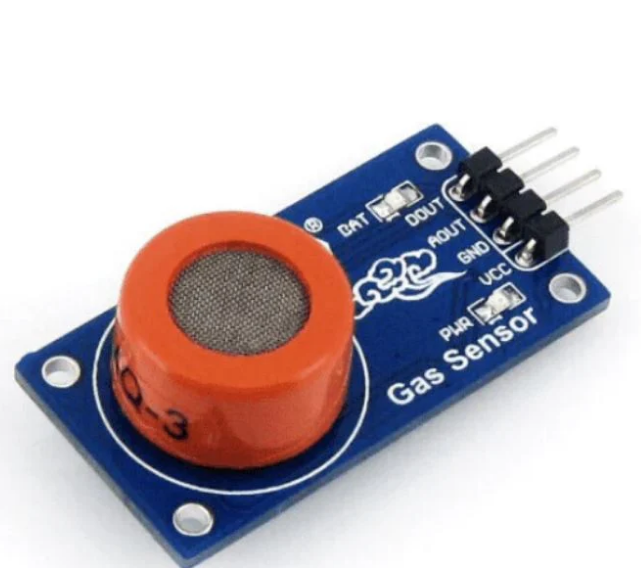

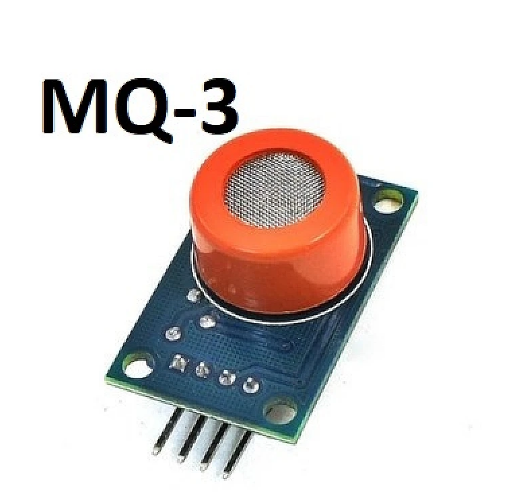

    MQ-3 Gas Sensor Module

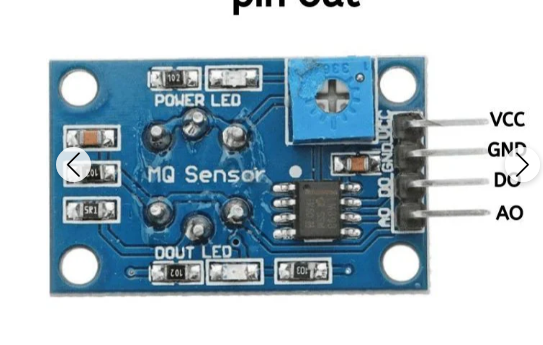

    This is the MQ-3 Gas Sensor Module, which is simple to use. It can sense the presence of Alcohol in the air. The module uses our MQ-3 sensor. It simplifies the interface to the odd pin spacing of the sensor and provides an interface through standard 4 x 0.1? header pins.  MQ-3 gas sensor provides an analog output corresponding to the concentration of the gas in the air and an easy-to-use digital output.

    The sensitive material used for this sensor is SnO2, whose conductivity is lower in clean air. Its conductivity increases as the concentration of alcohol gasses increases. It has a high sensitivity to alcohol and has good resistance to disturbances due to smoke, vapour and gasoline. MQ-3 gas sensor module provides both digital and analog outputs.

    This MQ-3 alcohol sensor is suitable for detecting alcohol concentration on your breath, just like your common breathalyzer. It has a high sensitivity and fast response time. The sensor provides an analog resistive output based on alcohol concentration. The drive circuit is very simple, all it needs is one resistor. A simple interface could be a 0-3.3V ADC
