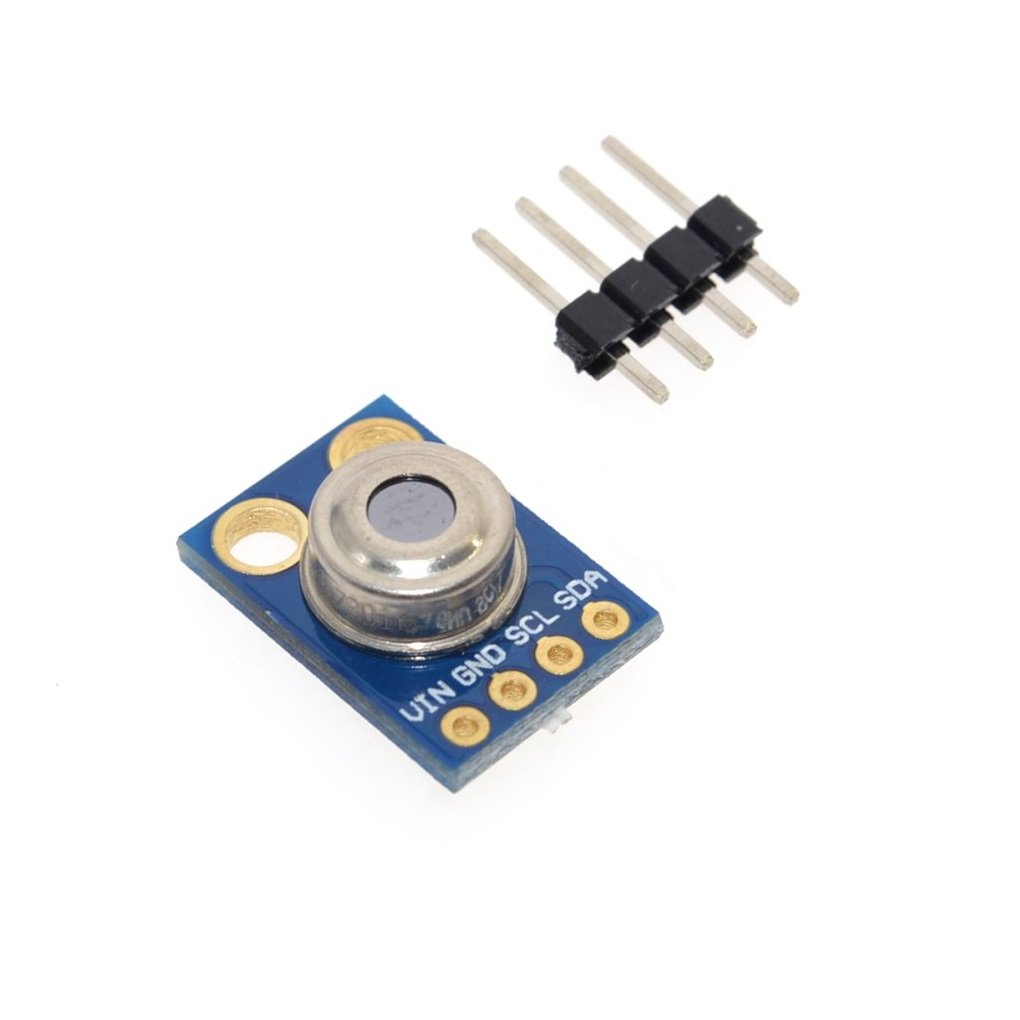

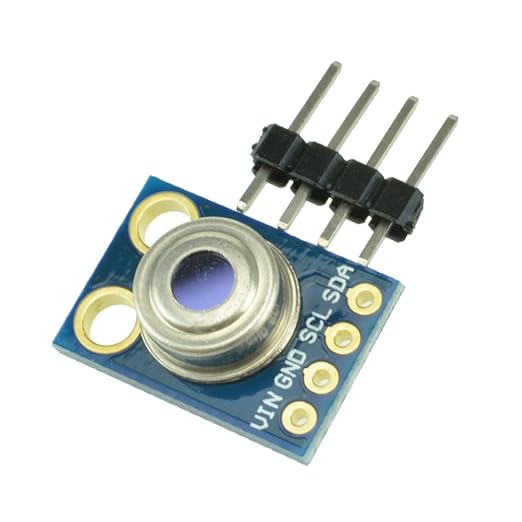

MLX90614 Non-Contact Infrared Temperature Sensor

The MLX90614 is an Infra Red thermometer for noncontact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning ASSP are integrated in the same TO-39 can. Thanks to its low noise amplifier, 17-bit ADC and powerful DSP unit, a high accuracy and resolution of the thermometer is achieved.

The thermometer comes factory calibrated with a digital PWM and (System Management Bus) output. As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in range of -20…120˚C, with an output resolution of 0.14˚C. The factory default POR setting is

The MLX90614 is built from 2 chips developed and manufactured by

• The Infra Red thermopile detector MLX81101
• The signal conditioning ASSP MLX90302, specially designed to process the output of IR sensor.

Applications:

1.High precision non-contact temperature measurements
2.Thermal Comfort sensor for Mobile Air Conditioning control system
3.Temperature sensing element for residential commercial and industrial building air conditioning;
4.Windshield defogging
5.Automotive blind angle detection
6.Industrial temperature control of moving parts
7.Temperature control in printers and copiers
8.Home appliances with temperature control
9.Healthcare
10.Livestock monitoring
11.Movement detection
12.Multiple zone temperature control up to 100 sensors can be read via common 2 wires
13.Thermal relay/alert
14.Body temperature measurement
