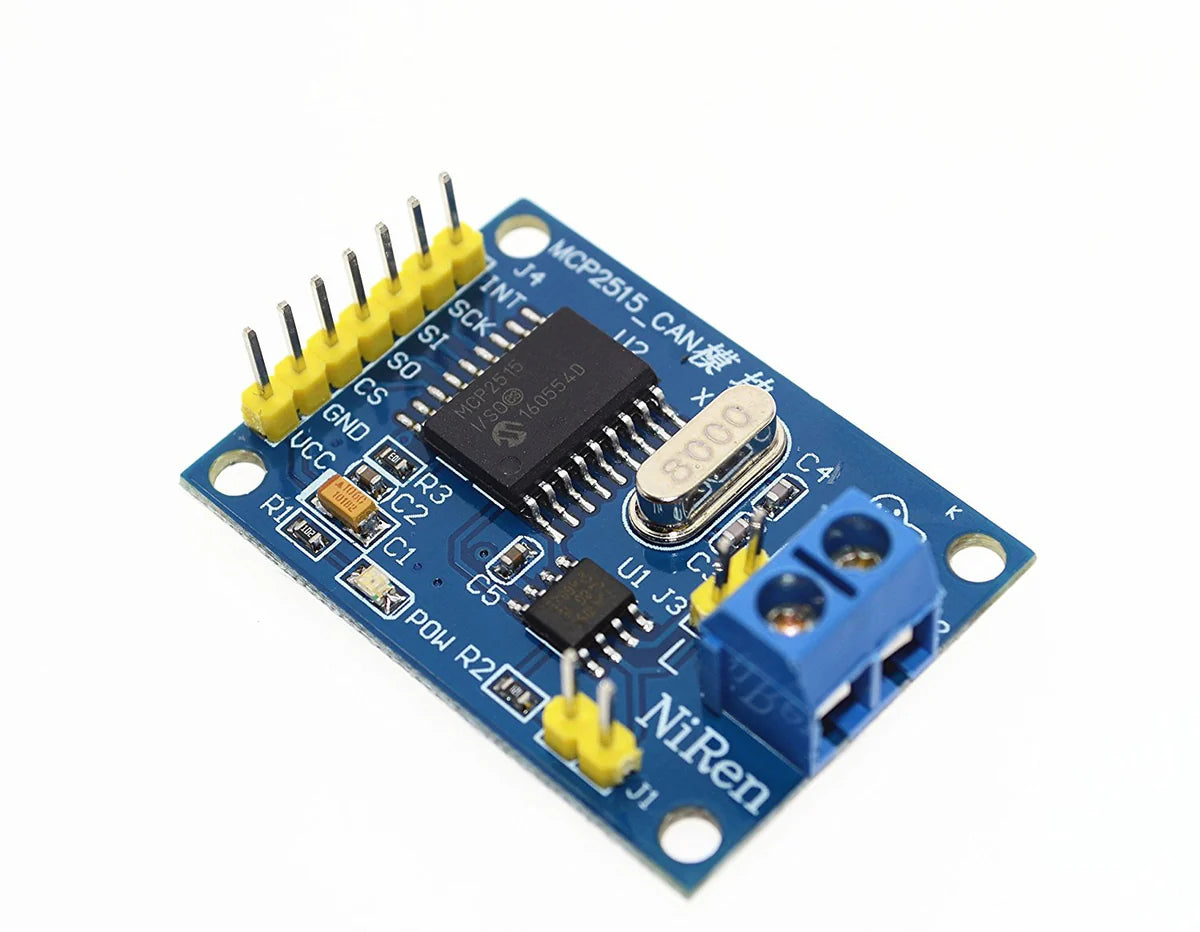

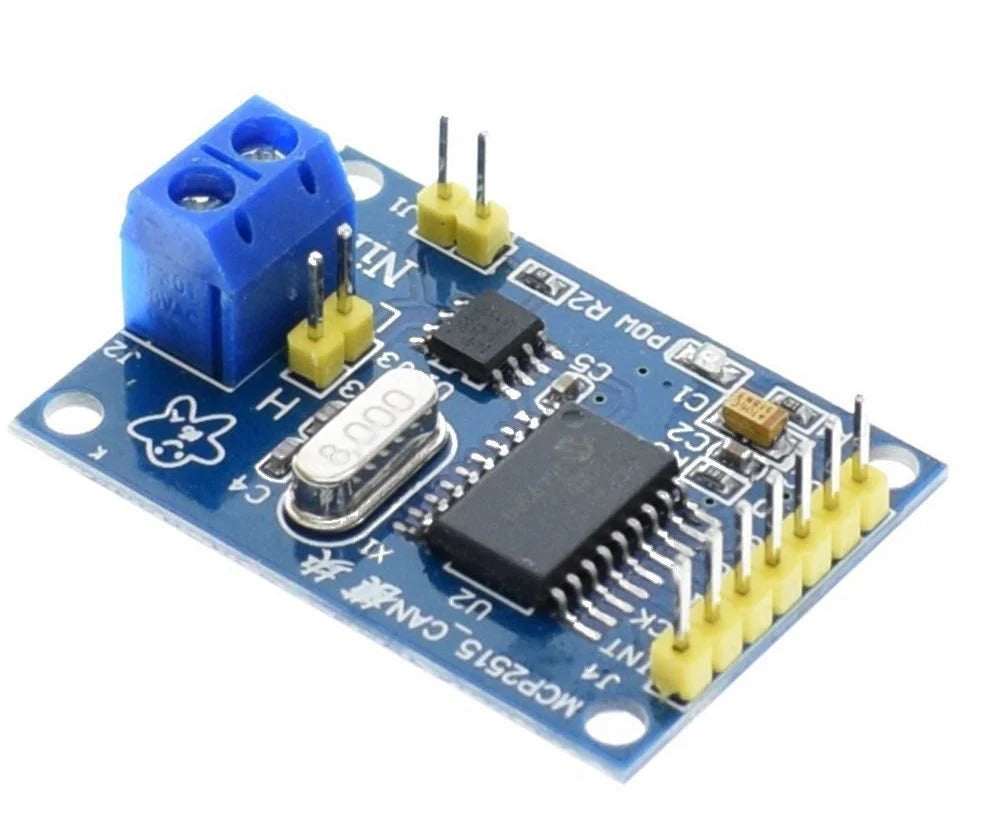

MCP2515 can module tja 1050 reciever

MCP2515 Module adopts CAN controller MCP2515, and
TJA1050 high-speed CAN transceiver. Onboard independent key. Microchip
MCP2515 independent CAN protocol controller, support CAN V2.0B
regulation. The connection between MCP2515 and MCU is through SPI.

Specifications:

• Support CAN 2.0B protocol
• Use High-speed CAN transceiver TJA1050
• Dimension: 40×28mm
• SPI control for expand Multi CAN bus interface
• 8MHZ crystal oscillator
• 120Ω terminal resistance
• Use serial port could view the communication data
• With independent key, LED indicator, Power indicator
• With power pin
