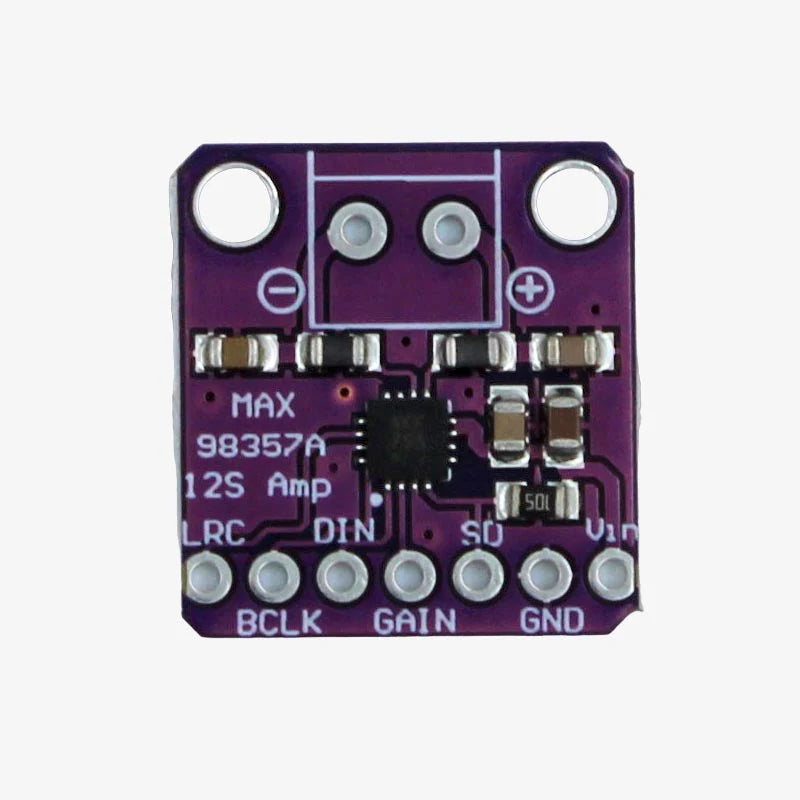

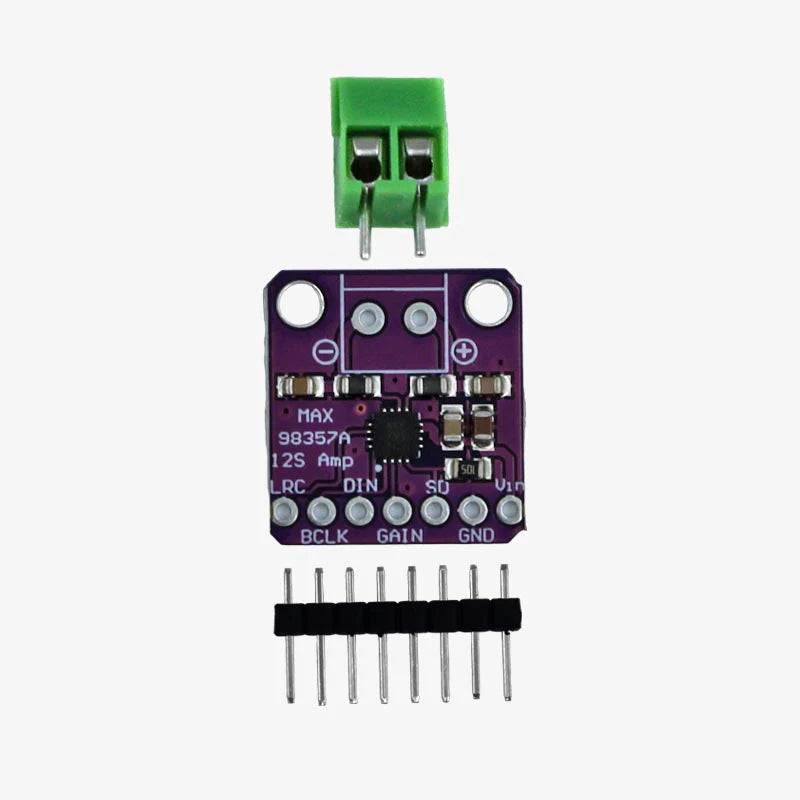

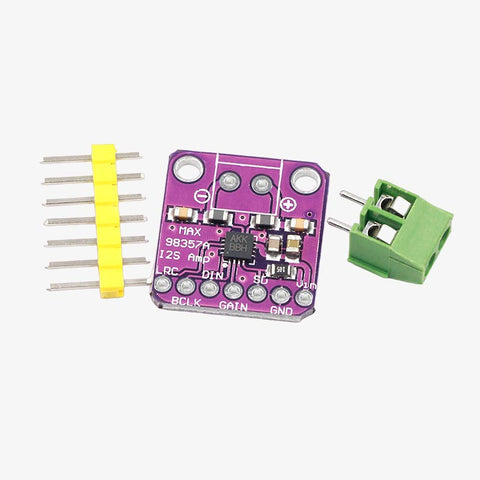

MAX98357 I2S 3W Class D Amplifier Audio Decoder Module
MAX98357 I2S 3W Class D Amplifier Audio Decoder Module
Regular price
Rs. 180.00
Regular price
Sale price
Rs. 180.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Order On WhatsApp
Checkout safely using your preferred payment method

MAX98357 I2S 3W CLASS D Audio Amplifier Module accepts digital audio through the I2S interface and converts it to an analog output signal and amplifies it to allow direct speaker connection. It combines an I2S D/A converter with an audio amplifier on one board.
MAX98357 I2S 3W CLASS D Audio Amplifier Module is suitable for Raspberry Pi. By default, the stereo signals (L + R) are mixed to form an output signal. The behavior can be changed using a resistor so that only L or R is output.
Specifications:
- Model: MAX98357
- Output Power: 3.2W at 10% THD (4Ω Impedance Speakers, 5V Power Supply)
- Operating Voltage: 2.7V - 5.5V
- PSRR (Power Supply Rejection Ratio): 77dB at 1kHz
- Selectable Gain Options: 3dB, 6dB, 9dB, 12dB, 15dB
- Input Compatibility: I2S digital audio input with support for 3.3V and 5V signal levels
- Signal Mixing: Default stereo signal mixing (L + R)
- Resistor Configuration: Easily configurable for individual L or R channel output.
