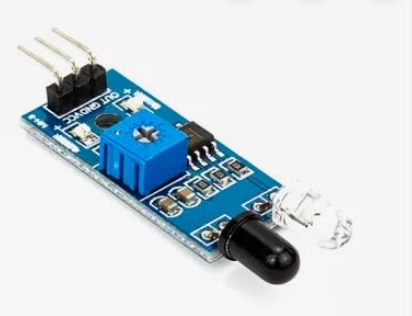

IR Sensor Module - LM393 Photoelectric Sensor Module
IR Sensor Module - LM393 Photoelectric Sensor Module
Regular price
Rs. 70.00
Regular price
Sale price
Rs. 70.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Order On WhatsApp
The sensor module light is adaptable to the environment, with a working voltage of 3.3 V to 5 V. It has a pair of infrared transmitting and receiving tubes when detecting direction meet with obstacles (reflecting surface), reflected infrared receiving by the tube.
After the comparator circuit processing, a green indicator will light up, at the same time the signal output interface output a digital signal (a low-level signal), can adjust the detection distance through the potentiometer knob, effective distance range 2 ~ 80 cm, easy to assemble and use. So it can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and so on many occasions.
After the comparator circuit processing, a green indicator will light up, at the same time the signal output interface output a digital signal (a low-level signal), can adjust the detection distance through the potentiometer knob, effective distance range 2 ~ 80 cm, easy to assemble and use. So it can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and so on many occasions.
- Comparator chip: LM393
- Onboard detection indication
- The effective distance range of 2cm to 80cm
- A preset knob to fine-tune distance range
- There is an obstacle, the green indicator light on the circuit board
- TTL output is high whenever it senses an obstacle
- 3mm screw holes for easy mounting
- 3-5V DC power supply module can be used
