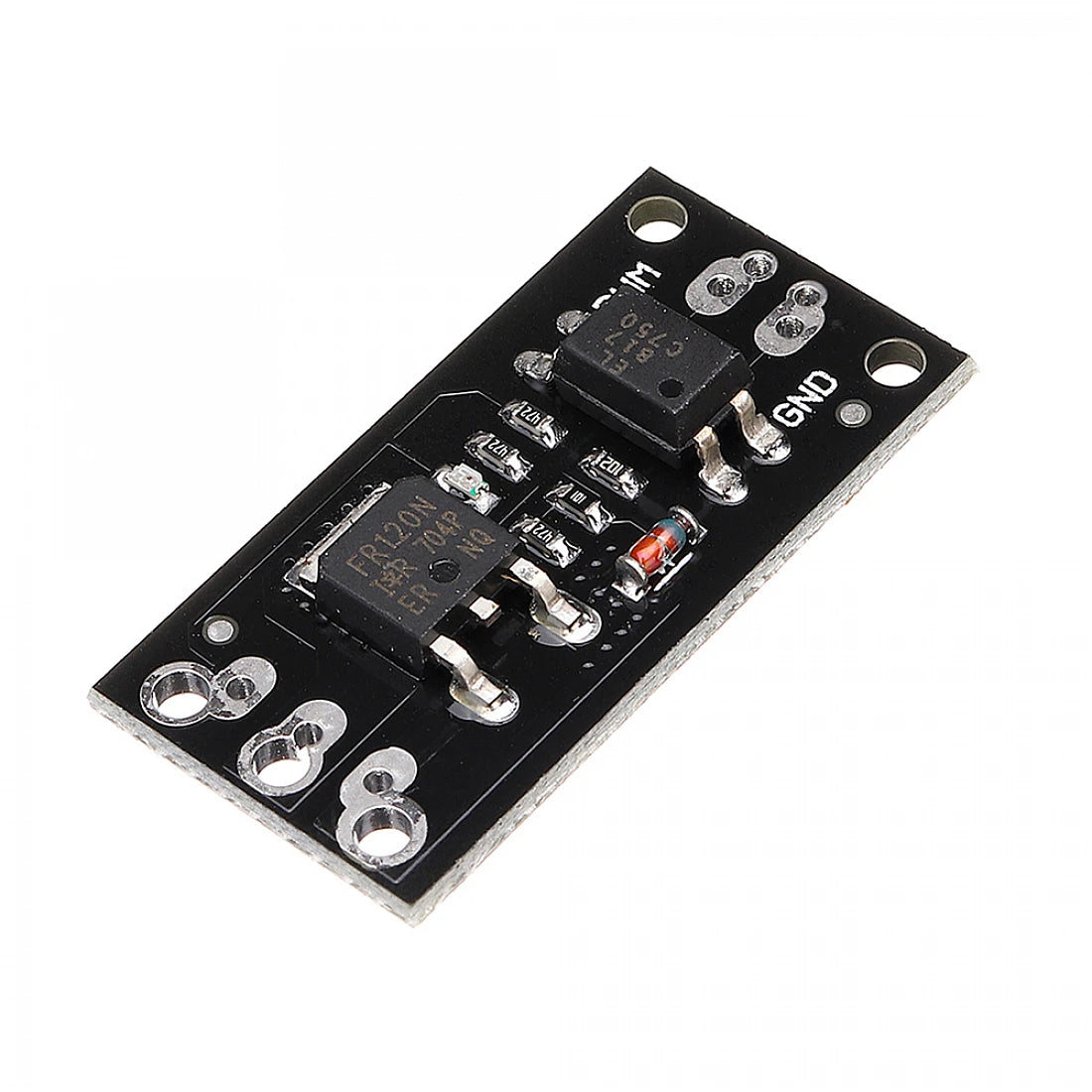

FR120N MosPet control Module Replacement Relay

Features:

• With optocoupler isolation, the control signal and the power of the controlled device are isolated, which greatly increases the rigidity of the interference.
• Compatible with MCU and control board, 3V or 5V signal
• High-level start, low-level stop, PWM speed regulation
• Widely used to control the start and stop of the motor, solenoid valve, and other tributary equipment

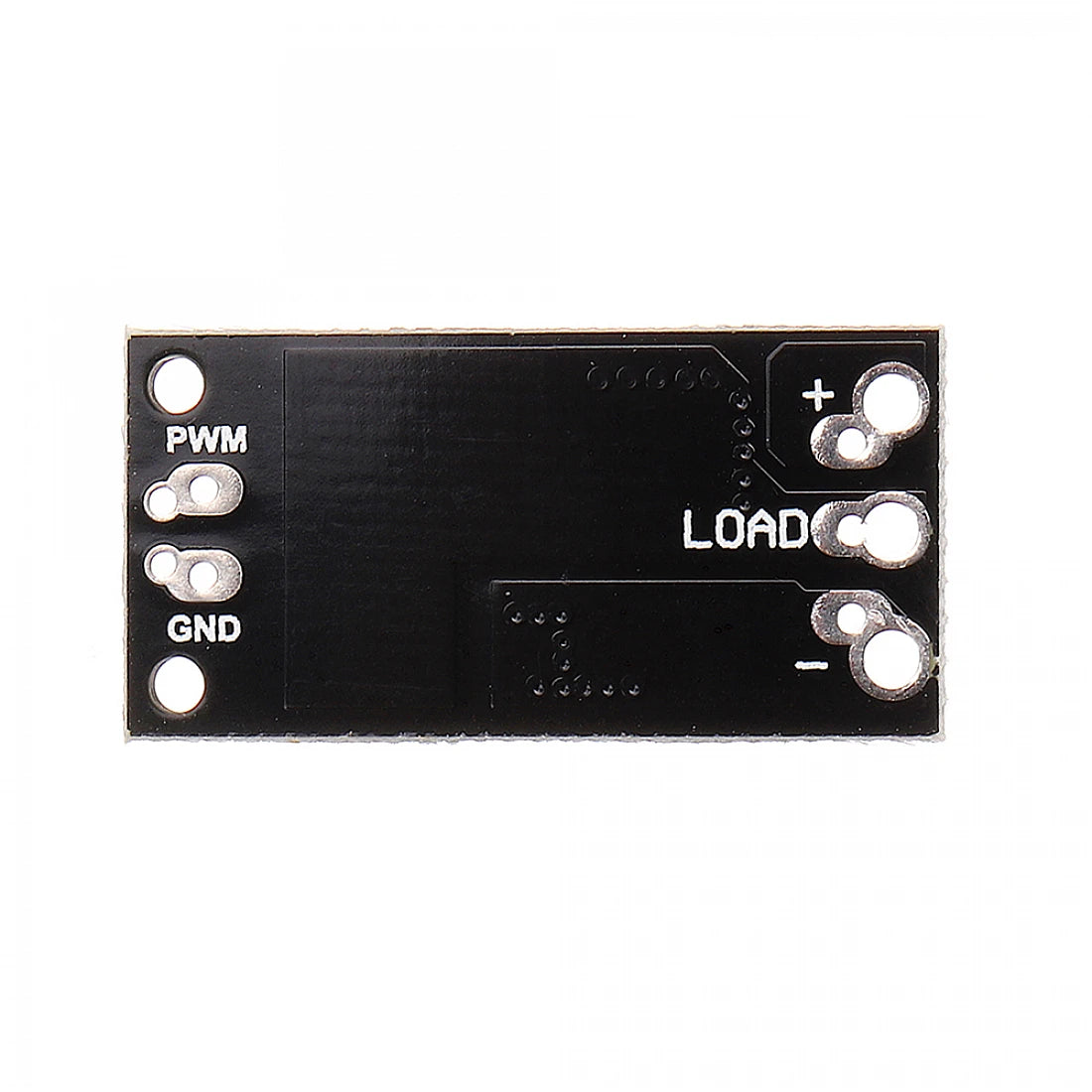

• The signal input side can be welded to the terminal or pin itself, compatible breadboard

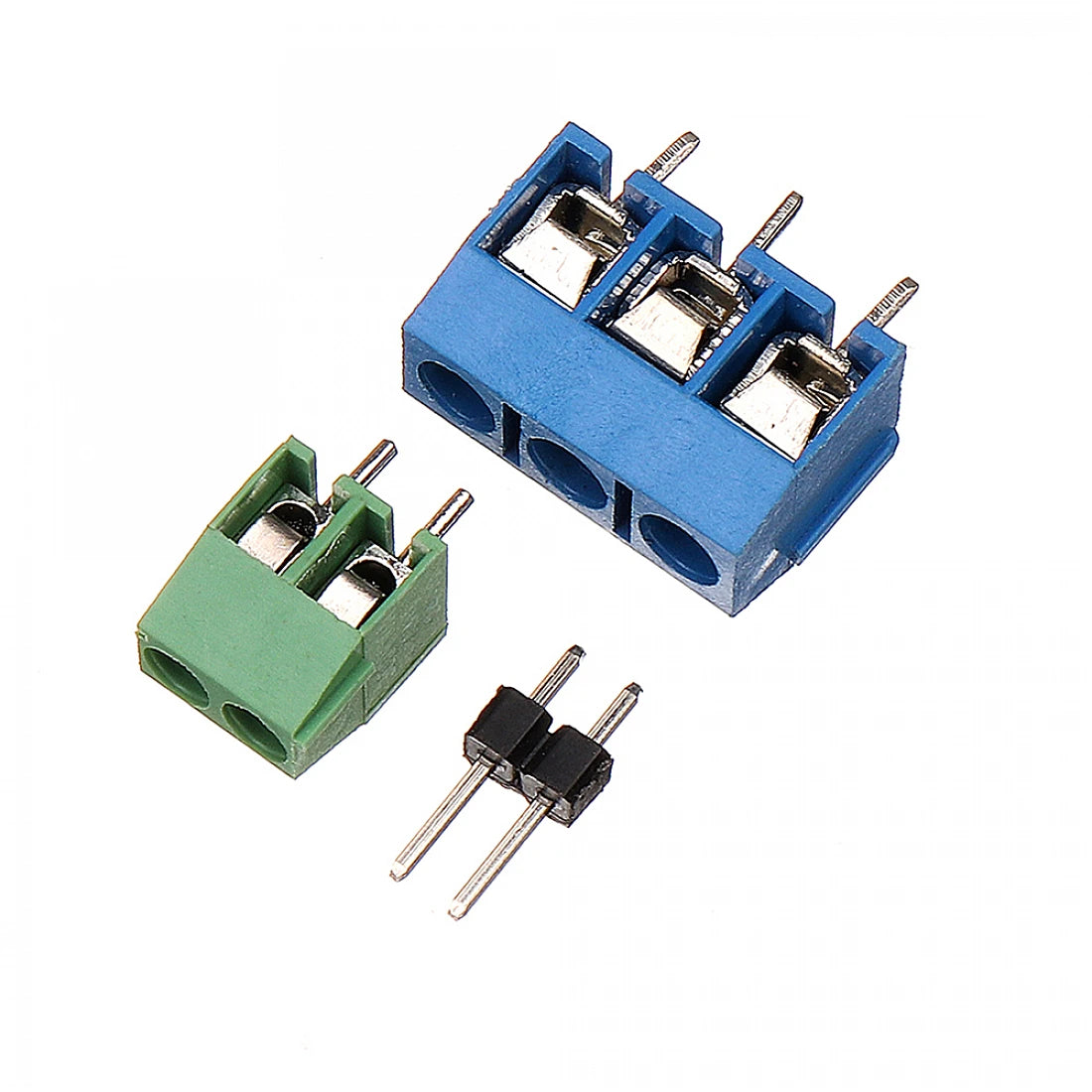

• Output can be soldered to the terminal or direct wire
• Module size 23mm X 16mm There are two 2mm diameter screw holes, hole spacing 8mm
• Specifications of MOS tube: 100V 9.4A
