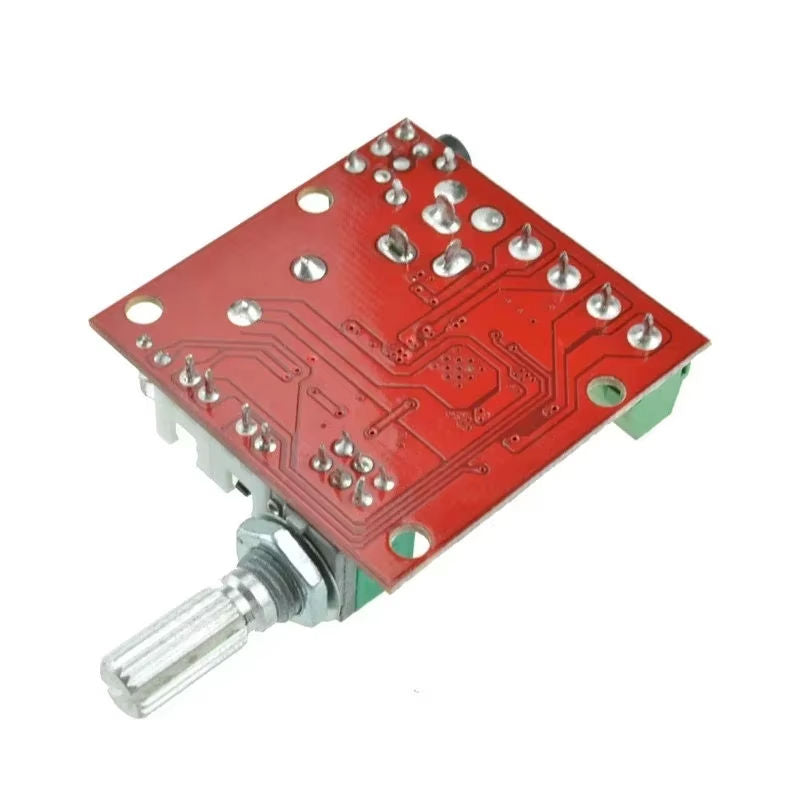

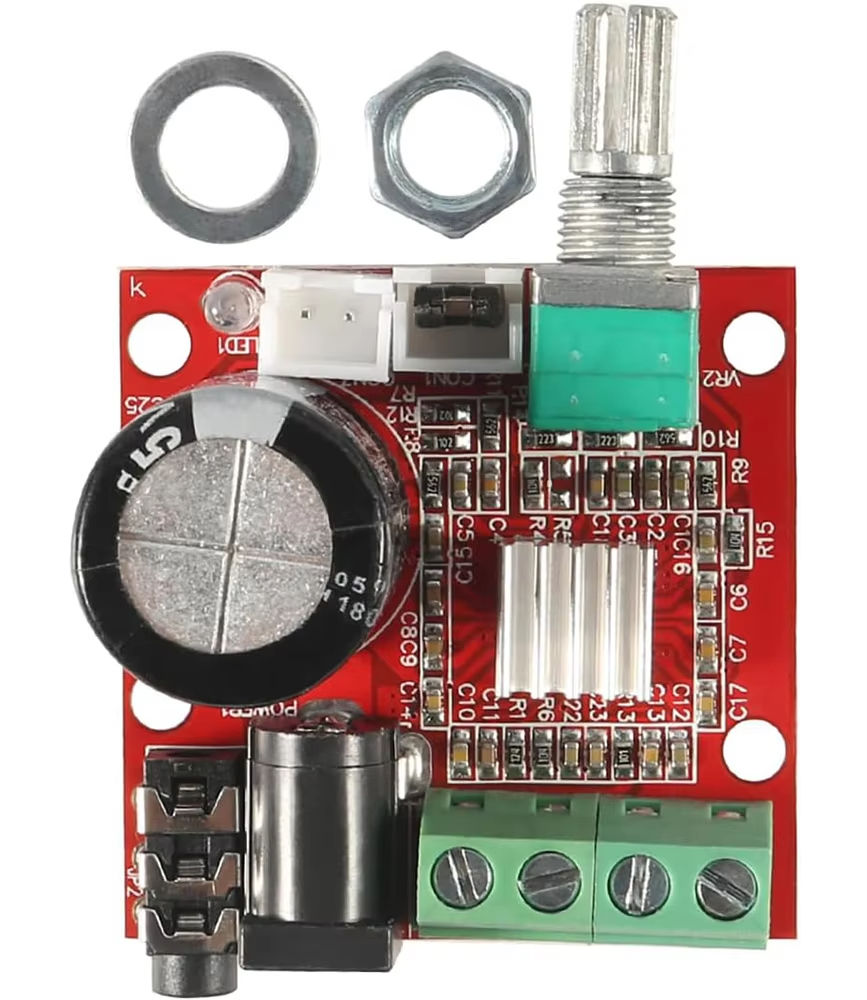

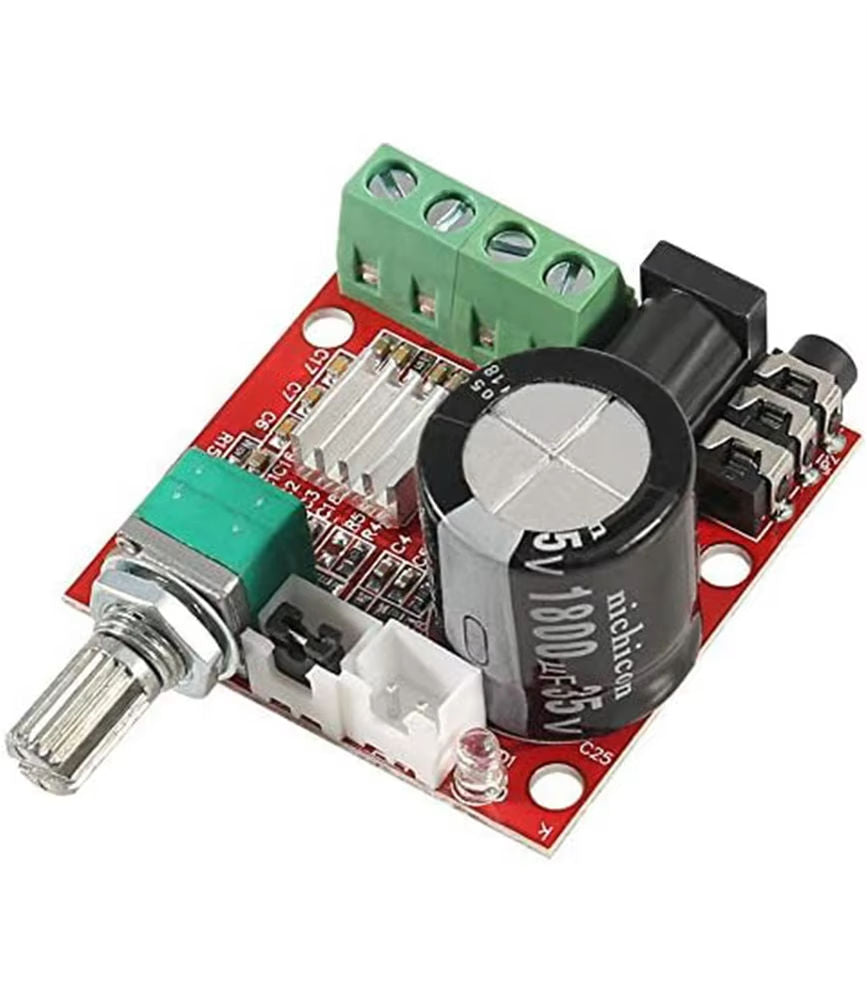

AM8610 Audio Stereo Amplifier Board 2X10W Dual Channel D Class

Description:

This board is designed around the PAM8610 integrated circuit, a 10W per channel Class D digital audio power amplifier. Class D amplification offers high power output in a miniature size. 90% efficiency ensures a high quality sound reproduction. Built-in potentiometer for volume control makes for quick and easy set up. Includes speaker wire leads that plug into board. This board features over-current, thermal, and short circuit protection. It can be built into powered speakers or used as a standalone amplifier. The board's compact design is ideal for inclusion in OEM products or store displays.

Features:

• Supply Voltage : DC 7V-15V; Current : 1A ~ 2A
• Output: 10W (left channel) 10W (right channel)
• Working Mode: Class D (PWM modulation type)
• Frequency response: 20Hz to 50KHz
• 4-8 inch stereo speakers recommended.
• Do not short-circuit the audio output to each other or shorted to ground
• Carefully check before electricity, ensure the wiring is correct before electricity.
• This plate with a switching function, SW short, will turn off the power amplifier
• PCB board size : (40 * 40) mm
• Weight : 24 g

Applications:

• Flat Monitor /LCD TVS
• Multi-Media Speaker System
• DVD Players, Game Machines
• Boom Box
• Music Instruments
