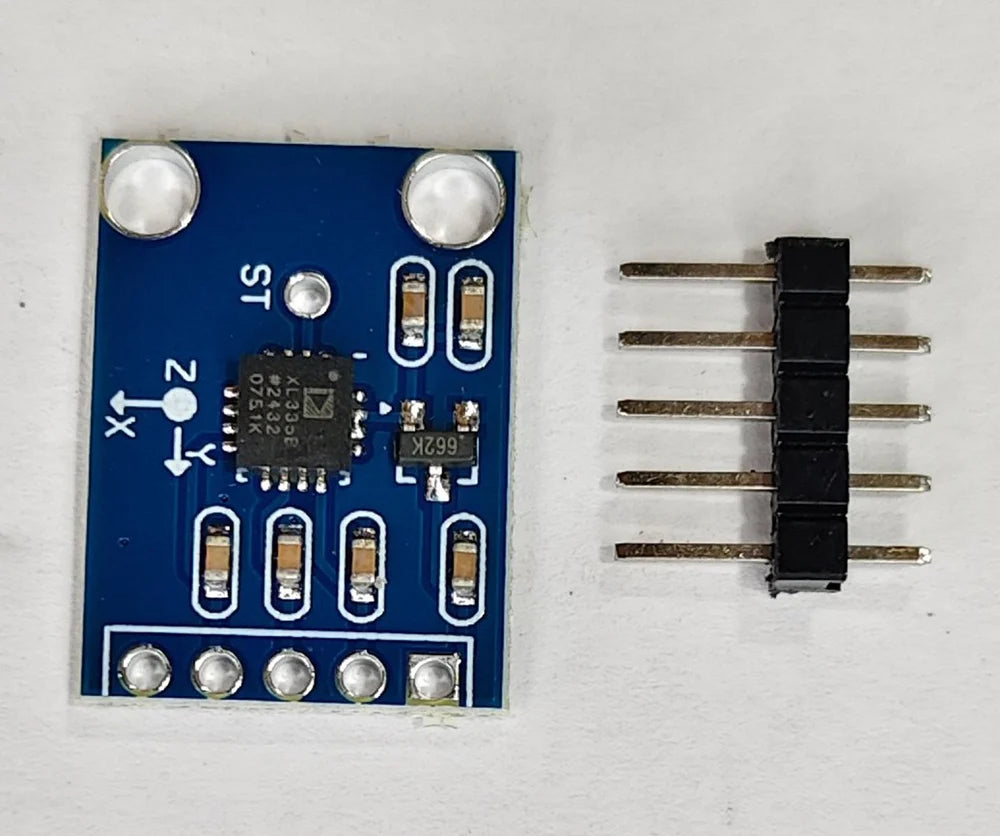

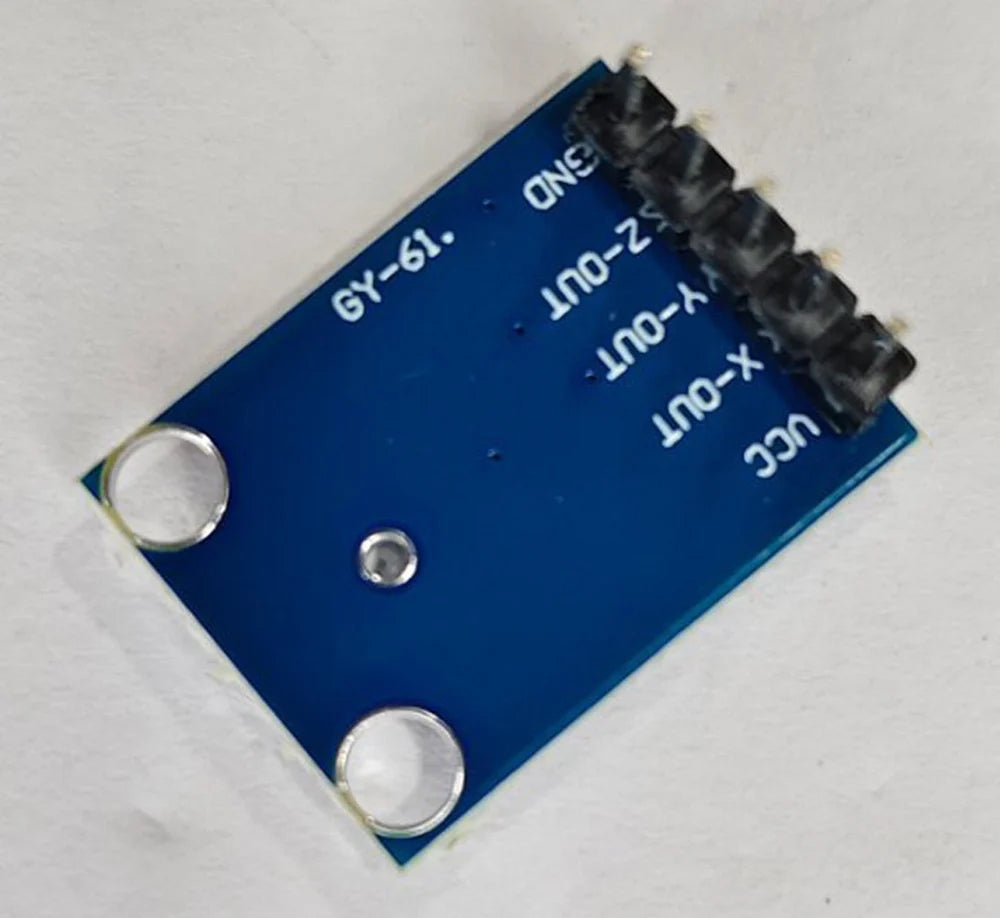

ADXL335 3-Axis Accelerometer Module

About ADXL335

The ADXL335 is a small, thin, low-power, complete 3-axis accelerometer with signal conditioned voltage outputs. The ADXL335 Module 3-axis Analog Output Accelerometer measures acceleration with a minimum full-scale range of ±3 g.

It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration. This breakout board comes with an onboard voltage regulator and works at both 3.3V & 5V (3-5V).

An accelerometer is an electro-mechanical device that will measure acceleration forces. These forces may be static, like the constant force of gravity pulling at your feet, or they could be dynamic – caused by moving or vibrating the accelerometer.

Applications :

1. FPV, RC, and Robots systems
2. GPS navigation systems
3. Impact recognition and logging
4. Gaming and virtual reality input devices
5. Motion-activated functions
6. Intelligent power saving for handheld devices
7. Vibration monitoring and compensation
8. Free-fall detection
9. 6D-orientation detection

Features :

1. Onboard LDO Voltage regulator
2. Can be interfaced with a 3V3 or 5V Microcontroller.
3. All necessary Components are populated.
4. Ultra-Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
5. Tap/Double Tap Detection
6. Free-Fall Detection
7. Analog output
8. Build-in ultra-low noise linear LDO voltage regulator
9. Built-in onboard filters, which reduce noise from the motor and other high current electronics
10. Power LED
11. Designed for 5V logic level
