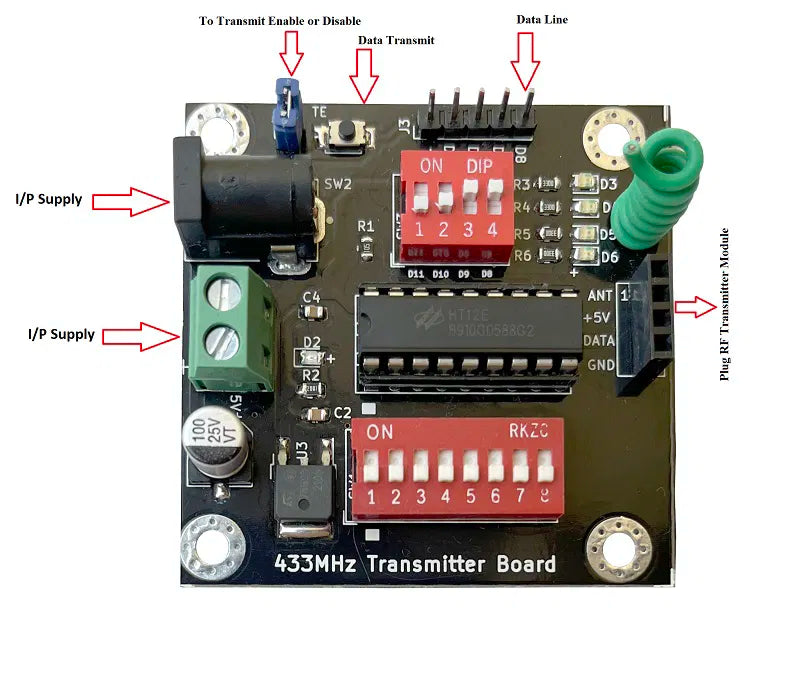

433Mhz Wireless RF Transmitter Board

433Mhz Wireless RF Transmitter Board

This module Supported frequencies 433mhz, Communication distance up to 100 Meter Line of site. This Module’s operating voltage Range is 5V ~ 12VDC. The Digital output of the module logic is +3.5VDC and Logic zero is 0VDC. ON board Voltage regulator is present to step down the Input Voltage. Address line selector switch HT12E, LED indication for valid Transmit and Receive the data. The wireless communication board has RF Encoder with HT12E ic chips. Easy interfacing with the rf modules, and Male Breakout pins for connecting to the microcontroller. Also, this device has enabled the transmission by the microcontroller. 8 Pin Dip switches for setting the address Line. 4 Pin Dip Switch For Send 4bits Data to the Receiver. 4 Status led’s. ON Board.

Note: This Product only included HT12E Encoder Board

Recommended Product: Click Here

Features/Specs:

• Manufacturer: SHARVI TECHNOLOGIES (OPC) PVT LTD
• Operating Voltage Supply: 5 to 12VDC
• Frequency Range: 433Mhz
• Communication Range: 100 Meter Line of site
• Encoder Chip: HT12E
• Operating Temperature: 25 ~ 85°C
• Mounting Screws: 4 x M3
